Compression Spring Machine With CNC Controlled Servo Motion System

Product Categories

Dongguan Jinding Machine CO.,LTD.

Contact Now

Ask Lasest Price
Brand Name :	JD
Model Number :	JD-330
Certification :	CE
Supply Ability :	60 sets per month for compressed spring machine
Delivery Time :	10-15 days after payment

Add to Cart

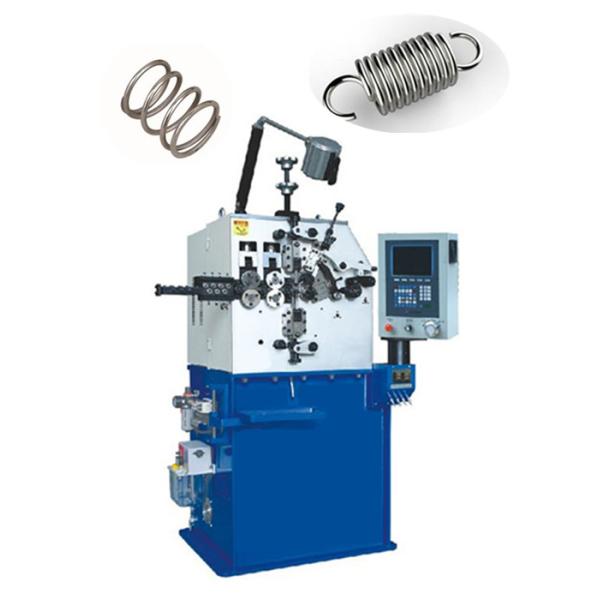

Compression Spring Machine With CNC Controlled Servo Motion System

Quick Details

Place of Origin:	GuangDong, China (Mainland)	Brand Name:	JD	Model Number:	JD-330
After-sales Service Provided:	Engineers available to service machinery overseas	machine color:	blue	Style:	CNC-625Z
Total Power (KW):	6.8	Number of Axes:	5 axis	Number of The Wire Feed Wheel:	2 pairs
Servo Motor of Wire Feed:	2.7KW	Servo Motor of Rotary Wire:	2.7KW	Servo Motor of Rotary mandrel:	1KW
Servo Motor of Curved shaft:	0.4KW	Sort:	Spring Machinery

Item Name	WNJ- Leader of Spring Machinery Manufacturer in China CNC-625Z Spring Machinery
Style	JD-330
Sort	Spring Machinery
Color	Grey/Blue
Wire Diameter (mm)	Φ0.3~Φ2.5
Total Power (KW)	6.8
Number of Axes	5 axis
Number of The Wire Feed Wheel	2 pairs
Servo Motor of Wire Feed	2.7KW
Servo Motor of Rotary Wire	2.7KW
Servo Motor of Rotary mandrel	1KW
Servo Motor of Curved shaft	0.4KW
Servo Motor of Cam axis	2.7KW
Main Machine(LWH)	160010001600
Net Weight of The Machine	1500KG
Power	Three phase 380V.AC.50HZ

Modle	JD-330 Compressed Spring Machine
Wire Diameter	0.8mm-3.0mm
MAX Outer Diameter	50mm
Max. Production Speed	250pcs/min
Feed Length	Unlimited
Send The Spool(Y)	4.5kw
The Camshaft(X)	2.7kw
Outside Diameter Shaft	－
Pitch Axis	1.2kw
Monitor Display	Color/Chinese/English
The Machine Size	120120170cm
Machine Weights	1000kg
Power	220V 3P 50/60Hz

Packaging & Delivery

Packaging Details:	in 2 plywood cases to pack this machine, is good for 20 FT Container.
Delivery Detail:	will ship goods in 7-10 days after 100% payment received

Description

Helical spring making machine

1. Wire Diameter range from 0.06 mm to 0.5 mm.

2. Max outer diameter up to 15 mm.

3. 2-axis control, for wire feed and pitch mechanism.

4. High precision equipped with CNC controlled servo-motion system

5. High production speed Max. up to 400 pcs/min..

6. Simplified setup and program with English/Chinese platform.

7. Capable of various kind of springs such as compression springs, oil seal springs, taper springs, battery springs and so on.

Spring Sample

FAQ

What is your machine controller and motors?
- Controllers are imported from Hust, Taiwan. Motors from Sanyo,Janpan.

Can you offer training in our plant?
- Basically, we have sales and service teams in Euro, Turkey, Korea,Japan, South American, India. If you are out of these countries, our enginner will be sent to your place for training if you need.

How many years you exported? Do you have CE?
- Definitely, we have exported spring machines in past 9 years, and all of the machines have CE certificates.
